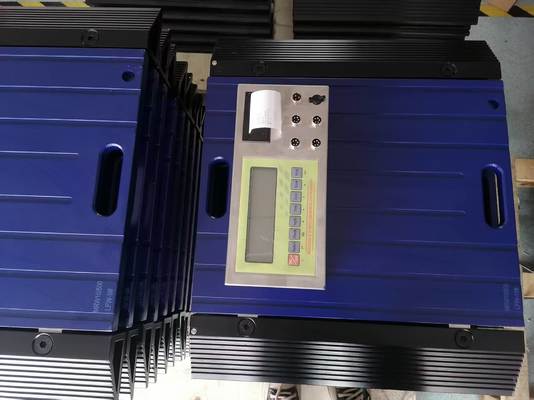

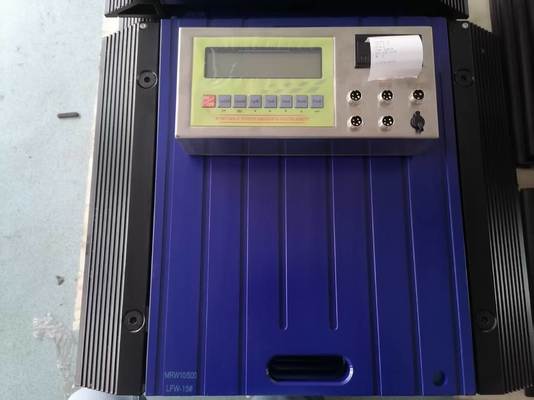

Portable Wire Truck Axle Scale Digital Balance Touch Screen Indicator Customized OEM ODM Supported Weighing Scales
| Model |
Size(A*B*C) (mm) |
Capacity (Per Weigh Pad) |
Description(Each Pad) | |
|---|---|---|---|---|
| AS002 | 300*400*35 | 500/1000/1500Kg |
4pcs LoadCell,10m Cable Capacity:500/1000/1500Kg |
|
| 400*500*58 | 1500/2500/3000/Kg |
4pcs LoadCell,10m Cable Capacity:1500/2500/3000Kg |
||
| 400*500*58 | 5000Kg |
4pcs LoadCell,10m Cable Capacity:5000Kg |
||
| 450*700*58 | 5000/10000/15000Kg |
6pcs LoadCell,10m Cable Capacity:5000/10000/15000Kg |
||
| 500*900*58 | 10000/15000/20000/25000Kg |
6pcs LoadCell,10m Cable Capacity:10000/15000/200000Kg |
||
| Rated load:1/2/3/5/6/10/20/30/40T | Compensated temp.range(℃): -10~+50 | |||
| Dynamic error (%F.S): 3 (5~10km/h) | Static error (%F.S):0.1~0.3 | |||
| Static comprehensive error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) | |||
| Rated output(mV/V): 1.0±0.1 | Use temp.range(℃): -30~+80 | |||
| Non-linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 | |||
| Error on corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 | |||
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 | |||
| Zero balance(%F.S): ±1 | Ultimate overload(%): 150 | |||
| Excitation voltage(VDC): 9~15 | Net weight(kg): 45 | |||
| Recommended voltage(V): 10 | Defend grade: IP66 | |||
| A/D conversion method | Σ-Δ 24bit |
| Input signal range | –19.5mV~19.5mV |
| Load cell excitation | DC 5V |
| Max. connection number of load cell | 1~4 |
| Load cell connection mode | 4 wire |
| Operating temperature | -10 °C ~40 °C |
| Allowable working temperature | -40 ° C ~ 70 ° C |
| Wireless transmission frequency | 430MHz to 470MHz |
| Wireless transmission distance | 800 meters (In Open Place) |
